Why Joint Backlash Destroys Zero-Shot Sim-to-Real Robotics

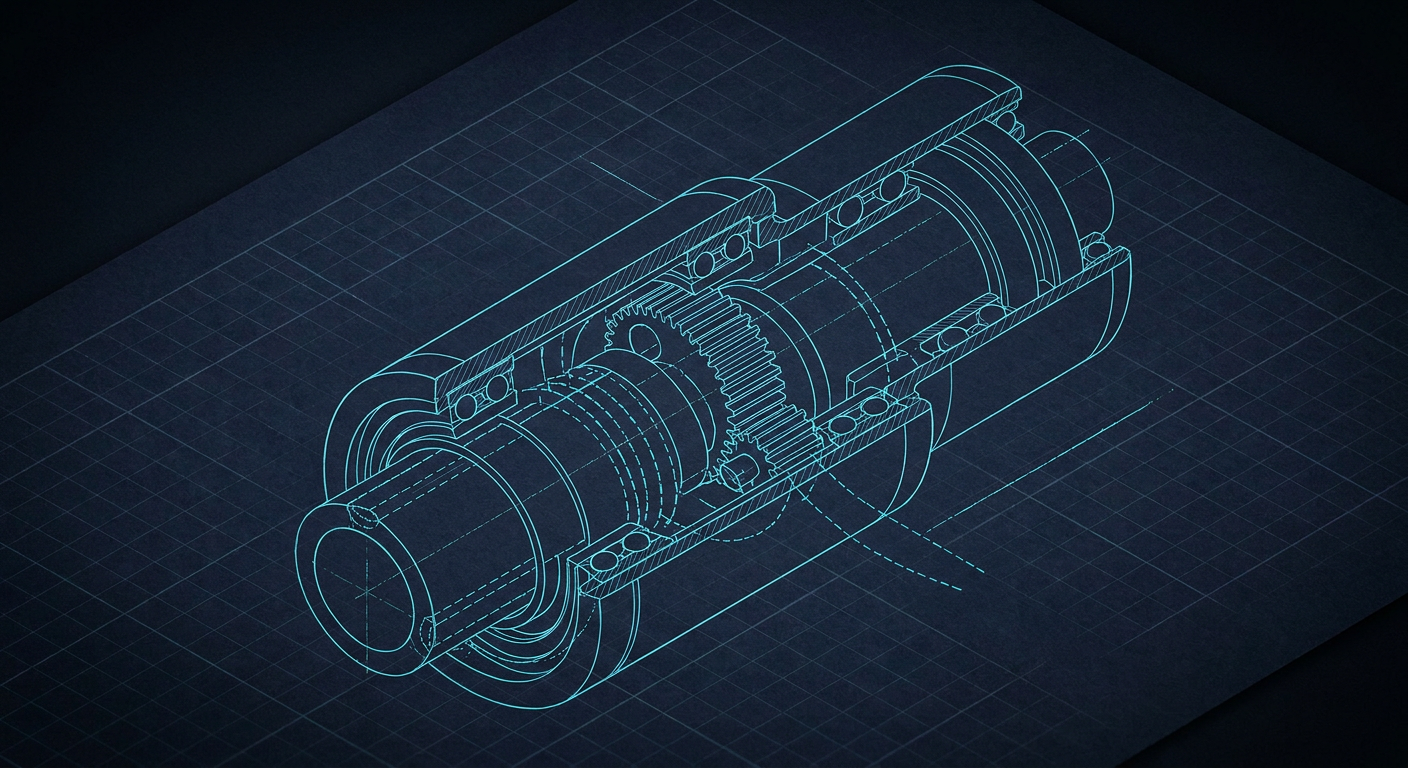

The Allen Institute for AI recently announced MolmoBot, an open, simulation-first stack for physical AI claiming zero-shot transfer from pure simulation directly onto real robotic hardware. Around the same time, MIT researchers unveiled an agentic system that automatically constructs complex synthetic physics playgrounds to train robotic policies at massive scale. Machine learning teams are celebrating zero-shot deployment as a solved pipeline problem. If your model works across ten thousand randomized virtual environments, the software thesis goes, it will work when flashed onto physical actuators.

Ask any toolroom machinist or mechanism designer who has watched a zero-shot policy run on physical hardware for more than forty-eight hours. The robot does not fail because the vision model misidentified a coffee mug. It fails because an 8 mm joint pin developed 40 microns of radial play, a 3D-printed gearbox tooth crept under cyclic load, and a 50:1 planetary reducer lost its positional repeatability under reversing torque.

Simulation assumes rigid bodies connected by mathematical constraints with uniform Coulomb friction. Machine shops build parts out of heat-treated 4140 steel, 6061-T6 aluminum, and Delrin, constrained by ISO fit classes, preloaded angular contact bearings, and grease that changes viscosity after twenty minutes of runtime. When the mechanical tolerance stack exceeds the domain randomization bounds assumed by the software team, the zero-shot policy enters an unrecoverable limit cycle. Hardware teams end up paying for multi-week rebuilds and custom zero-backlash gearboxes that blow their unit BOMs wide open.

The Physics Engine Illusion: Rigid Links and Zero Play

Most modern physics environments running behind reinforcement learning pipelines (such as Isaac Sim, MuJoCo, or PyBullet) evaluate multi-body dynamics using simplified linear complementarity problem solvers or penalty-based contact models. Joints in these environments are almost always modeled as idealized 1-DOF revolute or prismatic constraints. A revolute joint in a URDF has zero radial play, zero axial endplay, infinite housing stiffness, and a perfectly concentric axis of rotation.

When a policy learns to insert a peg or catch a dynamic object in simulation, it executes microscopic corrective torque pulses at 100 to 500 Hz. In software, these high-frequency torque reversals cost nothing. The simulated motor shaft reverses direction instantly, passing zero torque with zero deadband.

In physical hardware, every torque reversal crosses the mechanical backlash zone. If a joint relies on a standard commercial spur gear or budget planetary gearbox, it contains between 15 and 45 arcminutes of backlash. For a 400 mm robotic arm link, 30 arcminutes of backlash at the shoulder translates to roughly 3.5 mm of uncontrolled free play at the end effector.

When the policy issues a counter-torque to arrest a falling object or seat a connector, the motor spins through the backlash deadband under zero load, slams into the opposing tooth flank, and generates a sharp impulse shock. Within a few thousand cycles, this shock loading accelerates abrasive tooth wear, degrades bearing preload, and introduces non-linear hysteresis that the simulation never encountered.

The Mechanical Reality Gap: Four Shop-Floor Failure Modes

To bridge the gap between simulation claims and physical reliability, mechanism designers must account for four specific mechanical failure modes that pure software randomization cannot cure.

1. Reversal Deadbands in Speed Reducers

Machine learning engineers often believe that adding uniform random noise to joint position sensors in simulation will account for mechanical imperfection. Sensor noise is zero-mean Gaussian jitter; backlash is structural hysteresis. In a physical reduction drive, when the motor reverses from clockwise to counter-clockwise rotation, the motor shaft rotates through an angle without imparting any torque to the output link.

Backlash Angle (Theta_b) = Output Deadband / Reduction Ratio

If the control loop relies on an encoder mounted to the rear shaft of the brushless motor rather than a 19-bit absolute optical encoder mounted directly to the joint output link, the software controller remains blind to the fact that the output arm has stalled inside the deadband. The policy applies more current, the motor accelerates through the air gap, and the joint bangs into the drive flank at high velocity, exciting structural resonance in the link arms.

2. ISO Fits and Pin Clearance Stacks

A four-bar linkage or parallel gripper mechanism designed in CAD looks perfectly rigid. On the shop floor, every pinned pivot joint requires a running clearance fit unless you specify expensive preloaded needle rollers or paired angular contact ball bearings.

If a designer specifies a standard H7/h6 fit on an 8 mm pivot pin, the clearance ranges between 0.000 mm and 0.024 mm. If the hole is reamed slightly oversize to H8 (up to +0.033 mm) and the pin is ground to h7 (-0.015 mm), the clearance can reach nearly 0.05 mm per joint. In a 5-bar parallel manipulator with ten pivot interfaces, the cumulative tolerance stack creates over 0.4 mm of unconstrained end-effector play before any elastic deflection takes place. High-speed policies that rely on precise sub-millimeter positioning fail immediately upon transfer.

3. Stick-Slip Transitions and Low-Speed Boundary Friction

Physics engines typically simulate friction as a simple smooth curve using static and kinetic coefficients. Real mechanical joints operate across three distinct lubrication regimes: boundary lubrication, mixed lubrication, and hydrodynamic lubrication (the Stribeck curve). At near-zero velocities, such as when a robot arm slows down to make a delicate contact adjustment, dynamic friction spikes dramatically into static break-away friction.

When a zero-shot policy attempts small, low-torque trim adjustments, the joint does not move smoothly. It sticks until the motor current builds enough magnetic field to overcome static break-away force, then snaps forward uncontrollably (stick-slip). In physical hardware, this produces visible chatter and surface scarring on precision guide rails.

4. Structural Compliance and Torsional Deflection

Zero-shot policies frequently command abrupt acceleration profiles exceeding 30 rad/s². When rapid torque is applied to long structural links (such as thin-walled carbon fiber tubes or machined 6061 aluminum spars), the links deflect elastically like cantilever springs. The simulated rigid body assumes the end effector is at position $(x, y, z)$, while physical flexure places the actual tool point centimeters behind the kinematic command, resulting in severe positional overshoot.

Joint Architecture Comparison for Sim-to-Real Reliability

The following composite comparison illustrates how different drivetrain and joint selections behave when subjected to high-frequency zero-shot RL policies.

Note: Metrics represent an illustrative composite derived from industrial robotics drive catalogs (Harmonic Drive AG, Nabtesco, Maxon) and empirical hardware testing.

Strain wave drives deliver near-zero backlash, making them popular for sim-to-real transfer. However, their torsional spring rate is highly non-linear near the zero-torque crossing. If the simulation models the harmonic drive as a perfectly rigid gearhead, the actual physical robot will exhibit low-frequency hunting oscillations whenever the arm comes to a stop.

Designing Mechanisms That Make Zero-Shot Models Work

If your engineering team wants to take zero-shot models from open stacks like MolmoBot and deploy them on physical hardware without weeks of debugging, the mechanical design must enforce kinematic predictability. Here is the engineering decision frame mechanism designers should implement before releasing drawings to the machine shop.

                                   [Mechanism Specification]
                                               │
                         ┌─────────────────────┴─────────────────────┐
                         ▼                                           ▼
              [Dynamic Low-Inertia Joint]                 [High-Torque Precision Joint]
                         │                                           │
         ┌───────────────┴───────────────┐           ┌───────────────┴───────────────┐
         ▼                               ▼           ▼                               ▼
  [Quasi-Direct Drive]           [Timing Belt Stage] [Cycloidal Drive]       [Dual-Pinion Anti-Backlash]
  • 0 Backlash                   • Ground HTD / GT3  • < 1 arcmin backlash   • Split gear preload
  • High transparency            • Eccentric tension • High shock capacity   • Direct output encoder

Step 1: Enforce Output-Side Position Feedback

Never rely on single motor-encoder feedback for mechanisms driven through gearboxes. Specify dual-encoder architectures: one high-resolution magnetic or optical encoder on the motor shaft for current vector commutation (FOC), and a high-accuracy absolute encoder mounted directly to the output link after the gearbox. This guarantees that your control loop measures the true physical joint angle, exposing mechanical backlash directly to the software layer rather than hiding it behind the transmission ratio.

Step 2: Implement Mechanical Anti-Backlash Preloading

When budget or geometric constraints prevent the use of zero-backlash cycloidal reducers, design mechanical preload into the gear meshes:

• Use spring-loaded split-pinion gears for low-torque auxiliary linkages (such as gripper finger drives).
• Design eccentric bearing housings for parallel gear stages so machinists can dial out backlash during assembly using feeler gauges and test indicators.
• For linear drives, replace standard rolled ballscrews with preloaded double-nut ground assemblies (C3 or C5 precision grade) to eliminate axial endplay.

Step 3: Shift from Cantilever Pins to Supported Straddled Bearings

Every linkage pivot subjected to rapid policy direction changes should avoid cantilevered pin studs. Cantilevered pins flex under dynamic load, causing the bearing inner races to misalign, creating edge-loading and rapid wear. Design clevis joints with straddled, preloaded paired angular contact ball bearings or dual deep-groove ball bearings with internal precision shims.

Step 4: Include Joint Compliance Parameters in the URDF Export

When preparing mechanical assembly models for the simulation team, do not simply export a rigid STEP or URDF file. Provide measured mechanical spring constants and damping factors for each axis:

• Measure link deflection under static load using a digital dial indicator ($k = F / Δx$).
• Document joint deadband angles directly from the gearbox manufacturer test reports.
• Provide realistic Coulomb and viscous friction torque measurements taken from dry and lubricated physical joints.

Practical Tolerancing Checklist for Sim-to-Real Hardware

Before sending parts to the CNC mill or wire EDM, verify the mechanism against this manufacturing checklist:

1. Bearing Bores: Specify ISO M5 or N5 press fits for bearing outer rings in aluminum housings to prevent bearing walking under cyclic high-frequency vibration.
2. Shaft Fits: Specify ISO js6 or h5 transitions for shafts seated in precision rolling element bearings to eliminate radial slop without causing bearing race distortion.
3. Linkage Center-to-Center Distances: Hold pivot center-to-center hole tolerances to ±0.015 mm across multi-link planar assemblies to prevent kinematic binding across the full range of motion.
4. Thermal Dissipation: Include conduction paths and finning around enclosed motor housings; zero-shot RL policies run motors at higher average RMS currents than hand-tuned trajectory controllers, leading to thermal expansion that alters internal gear clearances.
5. Fastener Locking: Use prevailing-torque locknuts, Nord-Lock washers, or Loctite 243/270 on every dynamic fastener; high-frequency micro-vibrations from neural network policies loosen standard friction-fit screws within hours.

What this means for Mexaio AI

Generative mechanical design cannot end with an organic, visually appealing 3D mesh that looks functional in a rendering but ignores fundamental kinematic and machining constraints. True autonomous engineering requires mechanism synthesis tools that understand tolerances, bearing fits, joint compliance, and drivetrain dynamics.

At Mexaio AI (mexaio.ai), our focus is generating fully parametric, editable kinematic assemblies with verified mechanical constraints. Instead of generating dead boundary representations or unmachinable meshes, the platform synthesizes complete kinematic mechanisms where joint clearances, manufacturing tolerance stacks, and structural stiffness are calculated alongside the geometry. This allows engineering teams to hand simulation teams an accurate, physics-grounded mechanism model that will not tear itself apart when the physical controller goes live.

Direct Answer: Why Sim-to-Real Fails on Physical Mechanisms

Why does a zero-shot robotic policy that succeeds in simulation fail on real hardware? Physics simulation engines assume rigid bodies, infinite housing stiffness, and idealized joint constraints with zero mechanical deadband. In the real world, gearboxes contain backlash (3 to 30 arcminutes), pin joints have ISO clearance fits (10 to 50 microns), and structural links flex under dynamic acceleration. When high-frequency software policies command rapid torque reversals, the physical mechanism encounters deadband play, stick-slip friction, and structural resonance that software models simplify away, causing catastrophic limit cycles and accelerated mechanical wear.

The Path Forward for Hardware Engineering Teams

The software industry will continue pushing zero-shot models and synthetic training playgrounds. These advancements are valuable, but they shift the bottleneck from control policy generation directly onto mechanical execution.

As AI makes software generation faster and cheaper, the competitive edge in robotics moves to the teams that can design, tolerance, and build mechanically deterministic hardware. Treat the simulated policy not as an all-forgiving magic bullet, but as an aggressive, high-bandwidth input that will punish every loose pin, undersized bearing, and compliant link in your assembly. Design your mechanisms stiff, preload your joints, measure your real compliance, and let the software work against a predictable physical baseline.
