Building Dynamic BOMs and Multi-Pads to Stop Assembly Halts

Wafer capacity at 8-inch legacy fabs remains heavily constrained this quarter. Surging power demand from compute clusters has pulled significant silicon allocation toward high-voltage power management ICs and discrete MOSFETs, triggering sudden lead-time spikes across industrial analog ICs and mature-node microcontrollers. For a solo hardware engineer at a hardware startup or an industrial SME, the consequence is immediate and brutal. You spend six weeks routing a four-layer board, run your design rule checks, push the Gerbers to the assembly house, and receive an email forty-eight hours later stating that your primary buck regulator is out of stock across all franchised distributors, with a factory lead time of twenty-eight weeks.

Your pick-and-place run stalls before stenciling begins. If you selected a single-source proprietary pinout, you face a complete schematic revision, footprint replacement, layout re-route, and a fresh run of prototype stencils. The board respin costs $2,500 in setup and expedited shipping, but the six-week schedule slip can burn an entire quarter of runway before your pilot units reach field trials.

Surviving component lifecycle shifts without redesigning boards requires moving away from static bill-of-materials exports. Solo engineers need a dynamic sourcing strategy that combines live distributor stock tracking during schematic entry with dual-footprint PCB copper layout techniques. When designed correctly, a board can accept multiple drop-in or parametric alternates on the exact same copper without requiring a layout respin.

The Failure Mode of the Static Bill of Materials

Traditional PCB workflows treat the bill of materials as an export step. The engineer finishes schematic capture, places components, routes copper, runs DFM checks, and finally generates a CSV file with part numbers and quantities. That file gets uploaded to a contract manufacturer or distributor portal days or weeks after component selection.

In a volatile market, that delay creates three distinct failure points:

1. Ghost Stock: Distributor APIs may report tens of thousands of units on Monday, but an automotive tier-one or industrial OEM can place a spot buy on Wednesday morning that wipes out global franchised inventory.
2. Sudden End-of-Life (EOL) and Product Change Notifications (PCNs): Mature components often transition from active status to Not Recommended for New Designs (NRND) or Last Time Buy (LTB) without advance notice appearing on public catalog search bars.
3. Pin-Incompatible Revision Bumps: Manufacturers occasionally replace older silicon with pin-incompatible revisions that share the same general family name but feature different thermal pad dimensions, feedback divider voltages, or enable pin polarities.

When a single component disappears from inventory, the SMT line halts. The engineer is left with three bad choices: pay broker markups with high counterfeit risks, scrap the bare boards and re-route the layout, or attempt manual wire-modding on production prototypes. None of these options are sustainable when you are operating under tight venture capital or project milestone deadlines.

Live Parametric Filtering in Schematic Capture

Fixing component vulnerability begins during schematic capture, not during assembly quoting. Every critical component must be categorized by supply risk. Passive resistors and standard ceramic capacitors rarely require dual-footprint gymnastics because standard EIA case sizes (0402, 0603, 0805) offer hundreds of cross-manufacturer drop-in replacements. The real risks lie in active silicon: power management ICs, gate drivers, operational amplifiers, interface transceivers, and microcontrollers.

Instead of assigning a single static manufacturer part number (MPN) to an active symbol, build a parametric requirement set inside the schematic database. For a 3.3V switching regulator, the criteria should specify:

• Input voltage range: 4.5V to 24V minimum
• Continuous output current: 1.5A minimum
• Switching frequency: 500 kHz to 1.5 MHz (to maintain inductor sizing compatibility)
• Feedback reference voltage: exactly 0.6V or 0.8V
• Quiescent current: maximum threshold for battery applications

Once parametric boundaries are defined, select three distinct parts from independent silicon vendors (such as Texas Instruments, Analog Devices, Monolithic Power Systems, or Diodes Inc.) that meet the baseline. Check live distributor inventory across Digi-Key, Mouser, and element14 via API integrations. If none of the top three distributors hold at least ten times your total projected production run in active stock, reject the part from your baseline selection.

Dual-Footprint Layout Strategies for Power and Analog ICs

Selecting parametric alternates is only half the battle. If Part A uses a DFN-6 package with a 0.5 mm pitch and Part B uses an SOT-23-6 package with a 0.95 mm pitch, having an alternate part number on paper helps very little when bare copper boards have already arrived from the fab.

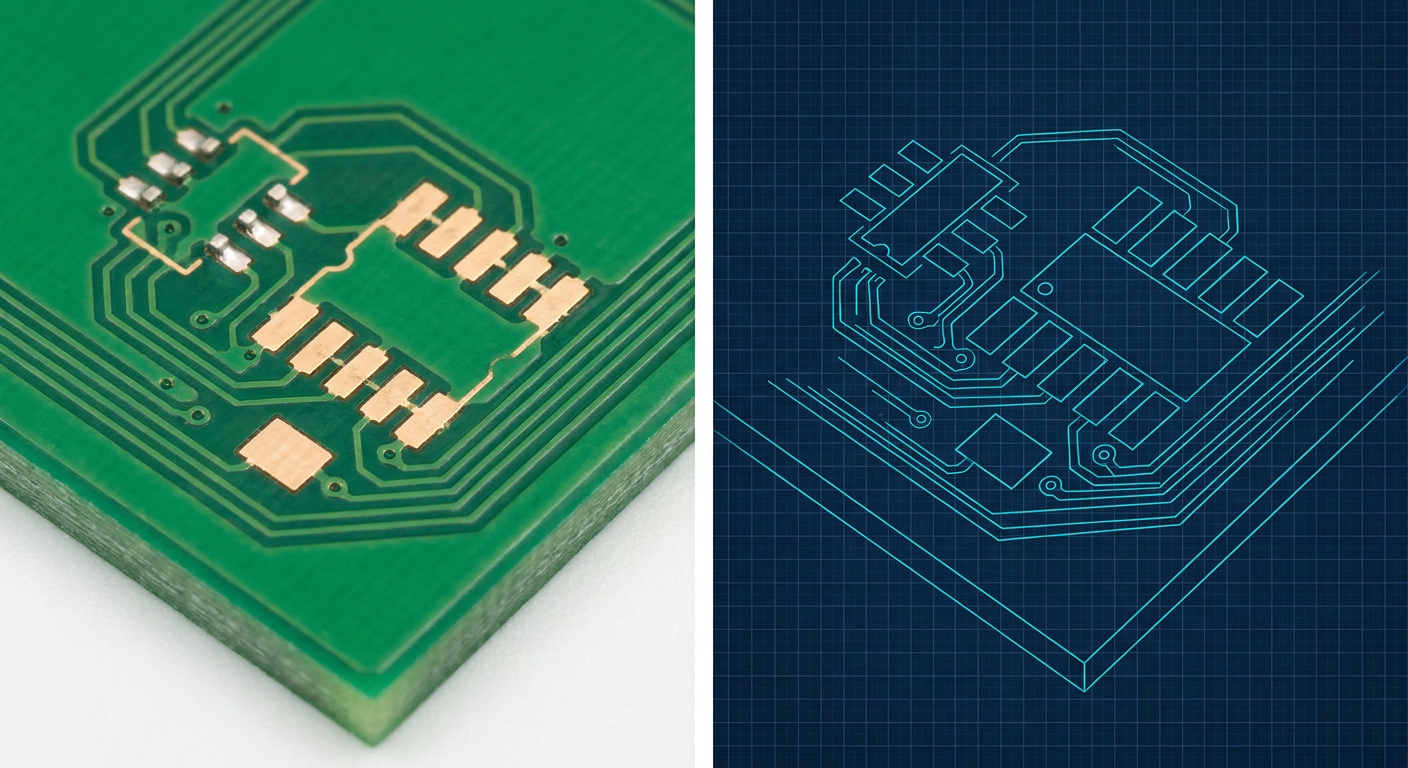

You can solve this problem by routing dual footprints directly onto the PCB layout. By nesting or overlapping footprints, a single set of copper lands can accommodate either package option on the SMT pick-and-place line.

1. Nested Concentric Footprints (SOT-23 inside SOIC-8 or DFN)

A standard SOIC-8 package or large SOT-223 regulator features an outer pad span wide enough to contain an entire SOT-23-5 or TSOT-23-6 footprint within its interior courtyard.

To implement nested concentric pads without triggering fab violations:

• Ensure at least 8 mils (0.2 mm) of clearance between the outer pads of the smaller package and the inner edge of the larger package.
• Tie common nets (such as GND, VIN, and VOUT) internally on the copper layer. Route a single trace from the shared functional node to the corresponding pin of both footprints.
• Apply high-resolution solder mask dams (minimum 4 mils width) between adjacent copper pads to prevent solder bridging during reflow.
• Create a unified silkscreen outline that indicates both package profiles, using a dashed line for the primary part and a solid line for the secondary part, ensuring the pick-and-place vision system and manual inspection operators can verify orientation.

2. Side-by-Side Parallel Footprints with 0-Ohm Selectors

When component pinouts conflict directly (for example, when Pin 1 is Enable on Vendor A but Pin 1 is Feedback on Vendor B), nested pads create fatal shorts. In these cases, place side-by-side footprint layouts sharing common power inputs and outputs, using zero-ohm resistors or solder bridges to direct control signals.

Position the secondary footprint adjacent to the primary footprint. Connect the input bulk capacitors and output inductors to both locations through wide copper polygons. Route the feedback network and enable pins through two 0402 zero-ohm jumper locations. If Vendor A is populated, Jumper R1 is installed and R2 is left unpopulated (DNP). If Vendor B is procured, the SMT feeder setup changes to install R2 and populate the secondary IC location. The bare PCB remains unchanged, requiring zero copper respins.

                    +--- [ 0-Ohm Resistor R1 ] ---> Primary IC Pin 1 (EN)
Control Signal -----|
                    +--- [ 0-Ohm Resistor R2 ] ---> Secondary IC Pin 1 (EN)

3. Extended Solder Pads for Dual Case Sizes

For passive components, discrete diodes, and low-pin-count power transistors, dual-size pads provide instant sourcing flexibility without increasing board area. By extending an 0805 pad inward, you can create a dual 0603/0805 footprint. The outer edges provide adequate fillet wetting for an 0805 component, while the inner pad spacing matches the solder fillet requirements of an 0603 passive. This prevents component tombstoning during convection reflow while expanding passive procurement options tenfold during spot shortages.

DRC and Solder Mask Rules for Multi-Footprints

Designing multi-footprint pads introduces specific Design Rule Check (DRC) and Design for Manufacturing (DFM) challenges that standard single-part layouts never face. Assembly houses often reject boards with overlapping copper unless rules are configured correctly in your EDA environment.

Net Tie Management

EDA tools like Altium, KiCad, or modern AI routing engines will flag overlapping copper pads as short circuits unless they are explicitly defined as a unified schematic component or connected via a "Net Tie" element. Create a dedicated multi-footprint library part where internal pad connections share the same logical pin number. This prevents false positive DRC flags while maintaining complete electrical continuity checks across the schematic and layout.

Solder Mask Defined (SMD) vs Non-Solder Mask Defined (NSMD) Pads

For closely spaced nested footprints (such as a 3x3 mm QFN nested inside a 5x5 mm QFN), use Non-Solder Mask Defined (NSMD) pads. NSMD pads provide a uniform copper edge that allows molten solder to wet around the sides of the pad, improving mechanical anchoring and self-centering. Ensure your PCB fabricator can hold a 3-mil (0.075 mm) solder mask web between adjacent pads. If the gap between the primary pad and the secondary pad drops below 3 mils, open the mask as a single gang window and apply solder paste stencil aperture reductions to avoid solder balling.

Stencil Aperture Customization

Never generate solder paste stencils blindly from CAD layers when using multi-footprints. If both footprints receive solder paste during stenciling, unpopulated pads will form molten solder mounds that can bridge to active leads or cause uneven board cooling.

Create dedicated paste mask variants in your CAD database. When Variant A is selected, the paste mask layer only outputs apertures for the primary footprint. When Variant B is built, the CAD system outputs apertures strictly for the secondary footprint. The bare board remains identical across both variants; only the laser-cut stainless steel stencil changes.

Cost and Schedule Trade-Offs: Single vs Multi-Footprint Strategies

To understand the financial and schedule protection that dynamic BOMs and multi-footprint layouts provide, consider an illustrative composite model of a four-layer industrial gateway production run of 1,000 units facing a sudden PMIC obsolescence notice during the pilot stage.

Note: Metrics presented in this table represent an illustrative composite model derived from standard quick-turn assembly rates, tier-one distributor pricing, and tooling charges across four-layer FR4 boards.

As the data shows, spending an extra eight hours during initial layout to configure dual footprints and live parametric alternates completely eliminates respin costs and avoids a two-month production delay when silicon goes obsolete. The slight reduction in baseline assembly yield (0.3%) is easily mitigated by adhering to strict solder mask webbing and custom paste aperture reductions.

What This Means for IntelCAD

Legacy PCB CAD tools treat the schematic, board layout, and component supply chain as three completely isolated databases. An engineer routes traces in one window, runs DFM checks in another, and checks distributor inventory in an external browser tab. When a component goes out of stock, the engineer must manually rip up copper, search datasheets for pin-compatible alternates, and adjust footprints by hand.

IntelCAD approaches this problem through unified physics-aware layout and automated supply-chain intelligence. By integrating live franchised distributor APIs directly into the schematic capture and autorouting pipeline, the platform continuously tracks component lifecycle, lead times, and stock levels while you design. If a power management IC shows extended lead times or an impending EOL notice, IntelCAD flags the risk immediately and can automatically generate compliant dual-footprint pad geometries with verified solder mask dams and paste mask variants. This ensures that the autorouted board is not merely electrically connected, but fully hardened against supply chain disruptions and ready for volume manufacturing.

The Solo Hardware Engineer Obsolescence Checklist

Before you release your next PCB design to manufacturing, run through this practical checklist to ensure an unexpected out-of-stock notification will not stall your SMT assembly run:

1. Classify Active Silicon Risk: Identify all single-source ICs on your schematic (microcontrollers, switching regulators, RF transceivers, and battery chargers).
2. Check Franchised Stock Multiples: Verify that total in-stock units across authorized franchised distributors exceed ten times your total projected production run.
3. Map Pin-Compatible Drop-Ins: For every critical regulator and op-amp, identify at least two parametric alternates with matching pinouts, feedback voltages, and operating thresholds.
4. Implement Dual Footprints for High-Risk ICs: For non-standard packages, route nested concentric pads (e.g., SOT-23 nested in SOIC-8) or side-by-side footprints with 0-ohm configuration jumpers.
5. Audit Solder Mask Dams: Verify a minimum 3-mil (0.075 mm) solder mask bridge between adjacent nested copper pads to eliminate reflow bridging.
6. Generate Assembly Variant Stencils: Create dedicated paste mask layers for each component variant so unpopulated alternate pads do not receive solder paste.
7. Lock Manufacturing Variants in the BOM: Ensure your contract manufacturer receives a clearly structured BOM containing primary and secondary approved manufacturer part numbers (AML/AVL) tied to specific assembly variant drawings.

Summary: How to Build a Dynamic BOM That Prevents Assembly Halts

To prevent component end-of-life notices and sudden lead-time spikes from halting your SMT assembly runs, integrate live distributor inventory APIs directly into schematic capture, define parts parametrically rather than by static part numbers, and layout dual-footprint copper lands on the PCB. Nesting smaller packages inside larger footprints or placing parallel footprints with zero-ohm jumpers allows contract manufacturers to switch to verified alternates instantly without layout respins, scrap costs, or schedule delays.
